Electric Pasteurisation Cabinets

Pasteurised soil promotes healthy plant growth by the eradication of soil-borne pests, diseases and weed seeds. This is achieved without harming the beneficial bacteria.

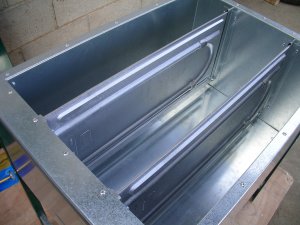

The simplest, cleanest and most effective method of carrying out pasteurisation at 55 – 80°C, is by means of insulated soil pasteurisers. They are fitted with special aluminium panel elements having large surface areas between which the soil is placed.

Uniform temperature is obtained throughout. The electrical loading remains constant and is unaffected by the nature of the soil.

Consistent results are thus obtained without any special experience of skill. After treatment the soil should be cooled rapidly and stored in clean hygienic conditions.

Specifications

Pasteurisation Cabinets     Pasteurisation Cabinets

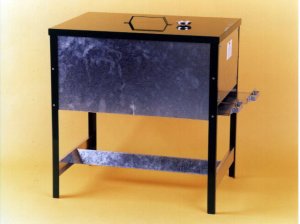

Pasteurisation Cabinet – 68 Litres

  • Fitted with two specially cast aluminium 1.5kW elements
  • Soil is filled at the top and emptied through the bottom by pulling out slides
  • Pasteurisation time is about 30 minutes, once required temperature is reached (max. 90 minutes total run time)
  • Fitted with a 2m long x 240 volt 15 amp heat resistant cable and moulded plug
  • Supplied with a dial type thermometer

Size:

  • Height = 725 mm
  • Width = 490 mm
  • Length = 700 mm
  • Weight: 64 kg

Options :

  • 70 Litre galvanised bin with castors for catching product instead of dumping onto floor. (Bracing is relocated to allow bin to fit under pasteuriser).
  • Other modifications can be made to suit your application or workshop.

Pasteurisation Cabinet – 210 Litres

Pasteurisation Cabinets

  • Fitted with six 1.5kw elements
  • Soil is filled at the top and emptied through the bottom by levers on the side of unit
  • Pasteurisation time is about 30 minutes, once required temperature is reached, (max. 90 minutes total run time)
  • Connected to a three phase supply and should be installed by a qualified electrician
  • Supplied with two dial type thermometers
  • Size:
    • Height = 1,145 mm
    • Width = 745 mm
    • Length = 795 mm
  • Weight: 125 kg
  • Options
    • Raised frame to allow dumping into a container.
    • Hungry board for loading with a bobcat etc.
    • Other modifications can be made to suit your application or workshop.
